This non-contact 3D automatic imaging measuring instrument is a classic imaging instrument that integrates innovative design concepts and has superior cost-effectiveness and rich measurement functions. It has high accuracy and excellent stability performance, making it an ideal choice for modern manufacturing industry. According to authoritative certification from the Chinese Academy of Metrology, the measurement performance of this product is superior to its accuracy index.。
Product Introduction:
The VMC series is a fully automatic laser planar measuring instrument launched by our company. The X/Y/Z axis adopts a fully closed-loop servo control system, combined with high-precision lenses, and the U axis adopts a stepper control system. Other ranges can be selected, making it very convenient to achieve precise measurement of various complex surface workpieces. It can achieve fully automatic optical measurement software, which enables large-scale and rapid detection of workpieces, and also has SPC data analysis function.
Product features:
1. 4-phase programmable LED cold light source for surface measurement of various complex workpieces, resulting in higher measurement accuracy.

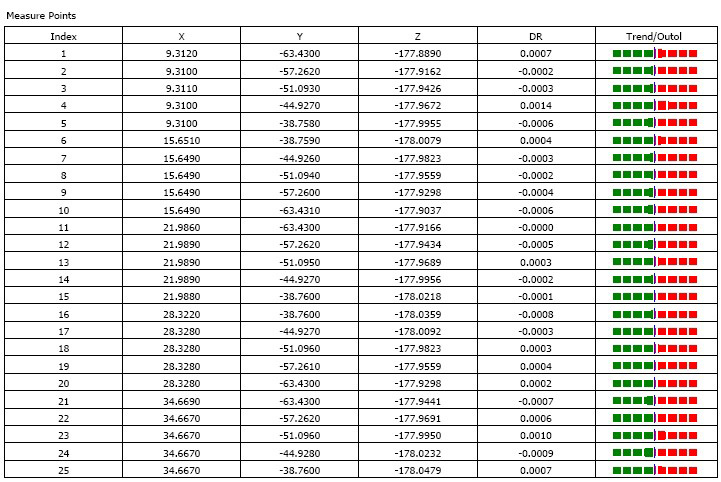

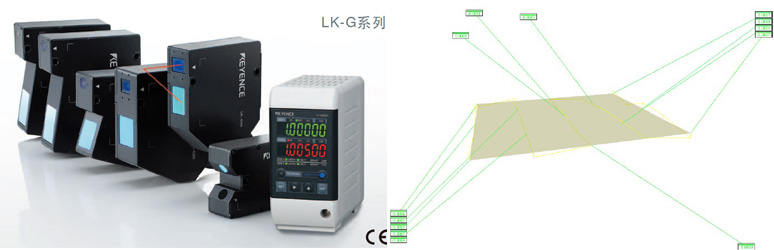

2. Laser can be added to achieve precise height, flatness, contour and other arbitrary scanning.
3. Full mouse/joystick operation, simple and easy to use.
4. Three axis CNC control system.
5. Real Vue fully automatic image measurement software。
Technical parameters:
Specific model | VMC400 |
(X/Y/Z axis) Measurement stroke (mm) | 400*300*200 |
Full machine size(mm) | 980*650*1650 |
Machine base and column materials | 高精度花岗石 |
CCD | Japanese brand color CCD |
X. Y-axis measurement accuracy | （3+L/200）μm |
Magnification rate | Step Zoom optical magnification: 0.7X-4.5X, image magnification: 28X-180X |
Resolution of optical ruler | 1μm |
repeatability | 2μm |
operating mode | 自动 |
power supply | 110/220V |
Suitable temperature and humidity | temperature：19°--24°，humidity：45%--75% |
Warranty period | 1 year |
Application field:
Mass and rapid testing of PCB boards, mobile phone accessories, connectors, mechanical accessories, etc
