Function:
1. One click intelligent grinding and polishing: After loading the sample block and clicking to run, there is no need for any manual operation midway, and the sample block is automatically polished and polished
2. Intelligent grinding and polishing system: Storage of 100 intelligent grinding and polishing solutions, providing you with convenient sample grinding and polishing solutions
3. Intelligent auxiliary material adding system: intelligently start and close the feeding system, with arbitrary settings for single feeding time and feeding interval time
4. Grinding and polishing pressure control system: PLC and force sensor fully closed-loop control pressure loading system, providing you with accurate grinding data
5. Multiple working modes to choose from: automatic grinding and polishing, manual grinding and polishing
6. Automatic grinding and polishing cooling system: automatically start and close the water valve
7. Automatic grinding positioning system: No need to manually move the grinding head, the sample grinding head group automatically switches between grinding and polishing discs

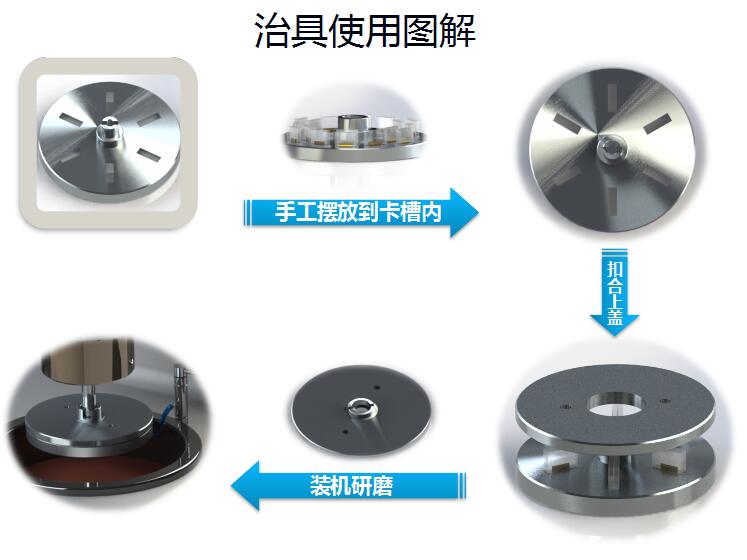

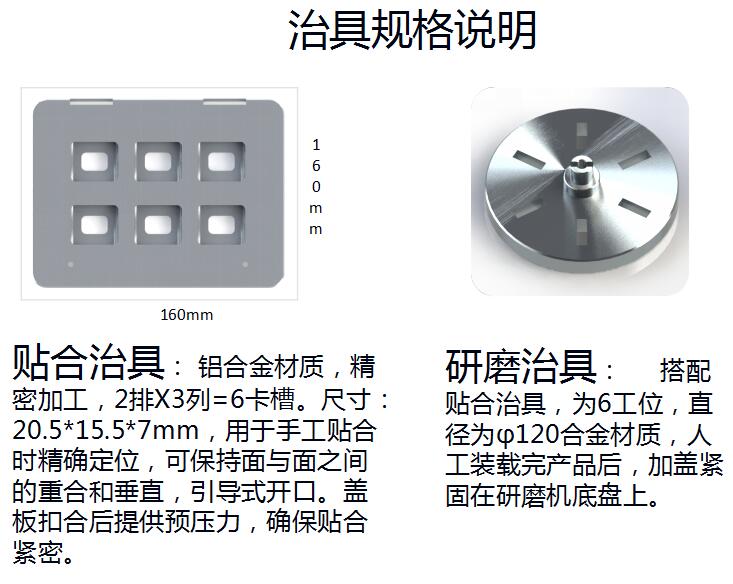

Specification of fixture:

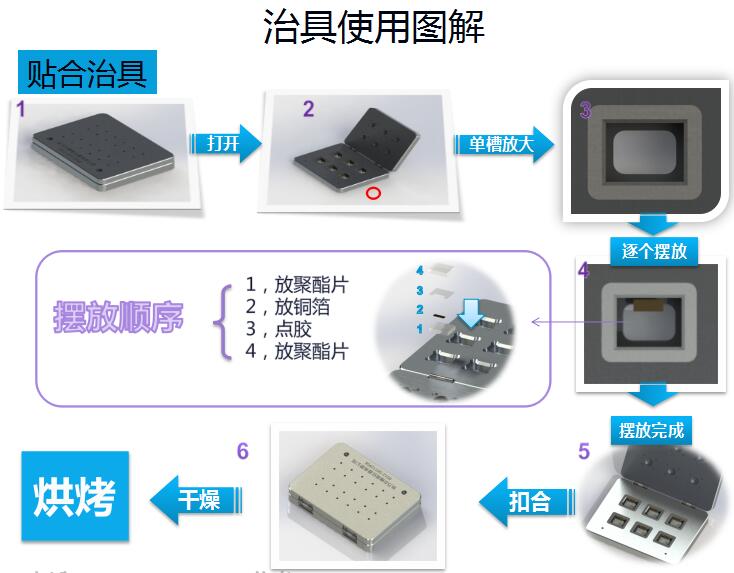

1. Scope of application of fixtures: non-standard customized types (one set for adhesive fixtures and one set for grinding fixtures)
2. Maximum loading capacity: 6 PCS/set for both lamination and grinding fixtures
3. Staffing: 1 person (responsible for fitting and grinding products)
4. External size: fitting fixture 160 × one hundred and sixty × 30mm, grinding disc φ 120 * 30mm

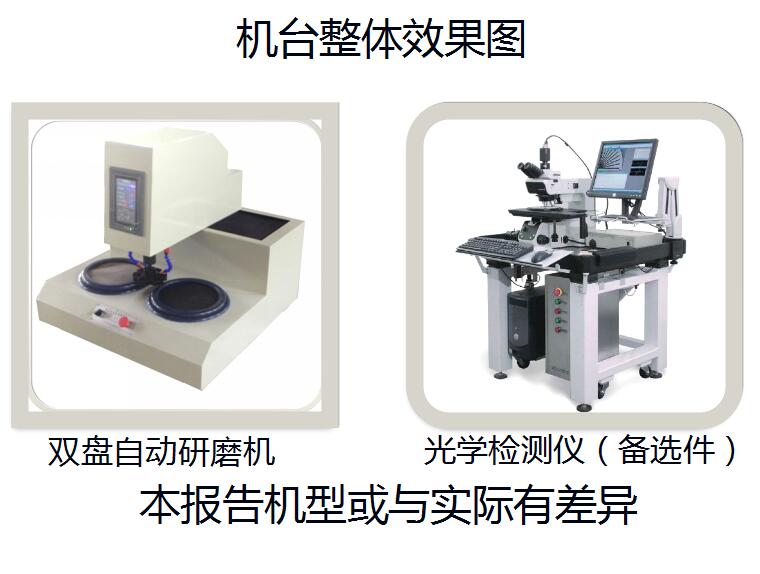

Grinding and polishing machine specifications:
The grinding and polishing method is fully automatic, and the grinding and polishing processes are automatically switched.
Control method: Color touch screen, PLC control
Intelligent one click operation mode (no need for manual operation or automatic program control during the process)
Infinite speed regulation of grinding and polishing speed (50-1500RPM)
Grinding and polishing method automatic/manual
Sample grinding scheme can pre store 100 grinding and polishing schemes
Pressure loading automatic loading, intelligent automatic switching
Programmed setting and automatic addition of abrasive feeding.
Intelligent setting of feeding interval, with a minimum feeding interval of 0.1S
Intelligent setting of spraying time, with a minimum spraying time of 0.1S
Automatic switching of grinding and polishing head with programmable settings, without the need for manual movement of the grinding head
Automatic grinding and polishing movement positioning with grinding head movement control setting
Cooling mode automatic
Pressure range 0-230N
Sample grinding time 0-9999 seconds X2
Host power 750W X 2
Grinding sample diameter 6x15x20 (mm)
Prepare 1-6 samples simultaneously
Grinding disc diameter Φ 230mm
External dimensions 800mm * 800mm * 700mm
Power supply 220V/50HZ
Grinding and polishing machine configuration:
One host
Two aluminum grinding discs
One sample pressure plate
A set of fitting fixtures
5 polishing cloths
