BTOB (board to board) fully automatic CCD detection machine specializes in detecting SMT flatness, contact point height, and missing needles of BTOB products.
Detailed introduction of BTOB (board to board) fully automatic CCD detection machine:
1. Detect SMT flatness, contact point height, and missing needles of BTOB products
2. Long and short PIN products can share a detection machine
3. Material tube feeding, automatic detection, automatic removal of defective products, and packaging of good materials
4. Users can set their own tolerance range, and the system automatically judges based on this tolerance
5. All product measurements and images are saved on the hard drive for easy viewing at any time
6. The software has a counter and yield statistics function for each needle, facilitating process improvement
7. Production capacity: 24pin and below products: can detect 1600-2000pcs per hou
24pin to 60pin products: can detect 1200-1400pcs per hour
8. Optical resolution 0.01 mm/pixel GR&R evaluation result<20%

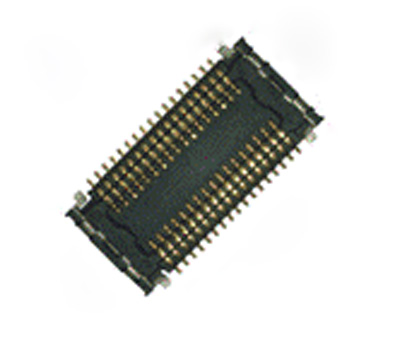

The BTOB (board to board) fully automatic CCD detection machine test products are as follows:
