1、
Dry ice capacity: 5kg2. Adjustable dry ice dosage: 0-0.4kg/min
3. Maximum compressed air pressure: 10 bar
4. Compressed air flow rate 1-2m3/min
5. Equipment weight: 62kg
6. External dimensions (L × W × H) : 595mm x 380mm x 675mm
7. Power supply configuration: voltage 220VAC, frequency 50HZ, current 3A
2、 Accessory standards
1. 6 meters Φ 1 1/2 inch compressed air pipe
2. 5 meters Φ 1 1/2 inch ice spray tube
3. 1 gun handle
4. 1 nozzle
5. 1 set of protective equipment
6. 1 manual
3、 Equipment functions

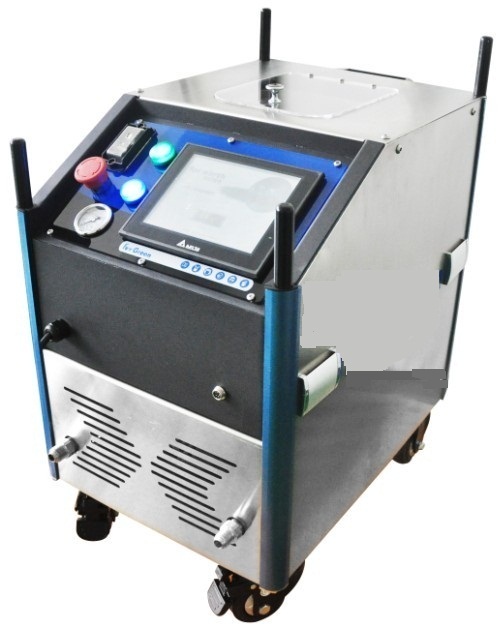

Dry ice cleaning machine is a cleaning machine designed specifically for enterprises that clean precision components or fragile cleaning objects. Its cleaning principle is that dry ice particles are driven by compressed air and impact the cleaned surface at high speed. Dry ice is instantly crushed and sublimated. Absorb a large amount of heat. Due to the different thermal expansion coefficients between the dirt and the substrate, the dirt quickly cracks. The crushed dry ice particles enter the cracks, and due to the vaporization of the dry ice, its volume expands nearly 800 times in an instant. This causes a "micro bomb" at the impact point, and the dirt quickly peels off, achieving the best cleaning effect.
The equipment is equipped with a funnel with a capacity of approximately 5Kg. Specially used for storing dry ice for cleaning purposes. During work, dry ice falls into the feeding device under the vibration of the vibrating motor. The feeding device rotates while Φ Cut 3mm dry ice particles into small pieces, then send them to the spray chamber and blow them out with high-pressure air. The dry ice forms various jet shapes under the constraint of the nozzle. Spray onto the surface to be cleaned to achieve the cleaning purpose. The shape and intensity of the jet are determined by factors such as the shape of the surface to be cleaned and the firmness of the dirt. Change the size and nozzle shape of the gun and adjust the feeding speed based on these factors of the target cleaning part. The feeding speed is adjustable from 0 to 0.4 Kg/min. Usually, the firmer the dirt, the faster the feeding speed, and the specific adjustment amount depends on the actual situation.
4、 Main features of the equipment
1. Composition: composed of hopper, feeder, gas supply system, injection system, and control system;
2. Dry ice supply method: Dry ice particles are directly supplied into the compressed air pipeline by mechanical means. In the pipeline, dry ice particles mix and accelerate with the air, and are sprayed out from the nozzle;
3. Made of 304 stainless steel with patented design for ice distribution shaft;
4. The design of a brand new touch screen control;
5. Equipped with a red emergency stop button;
6. The electrical knobs and switches operate flexibly without any obstruction;
7. Flexible installation of quick interfaces for each pipeline, with no air leakage after connection;
8. The device is easy to move and the casters can be braked, covering a large cleaning area for online cleaning;
9. Key electrical components such as frequency converters and solenoid valves shall use foreign branded products, while domestic branded products shall be preferred for other components;
10. The electrical control system can ensure the safe and reliable operation of equipment;
11. Cylindrical supply wheel for easier and faster maintenance;
12. The spray gun of the cleaning machine is equipped with an air source button and an ice supply button, both controlled by a 24V power supply, which is very safe;
13. The ice conveying pipeline adopts special ice conveying rubber pipes, which have a long service life;
14. The handlebar is equipped with lighting, which allows for a clear view of the cleaning area.
