一、TCM-4000用途(usage)： This metallographic cutting and grinding machine is a comprehensive touch screen cutting and grinding instrument: water-cooled precision automatic cutting and grinding. Precision cutting and grinding time: 3-5 minutes, applicable to diameters ≤ 30mm. This system is suitable for metallographic analysis and testing requirements in industries such as automobiles, home appliances, and electronics.
2、 System Characteristics
1. No resin solidification required
Previously, resin solidification and hardening cutting; Then rough grinding, polishing, time-consuming and laborious, making a sample takes several hours. Now this product does not require resin solidification, making a sample can be completed in about 5 minutes.
2. Fully automatic cutting and grinding integrated machine
This metallographic cutting and grinding integrated machine can achieve precision cutting and grinding,; There is a 'Learning Mode' that allows for visual manipulation (exclusive to the industry); Even customers can customize parameters for personalized cutting and grinding; Visualized cutting position (industry exclusive option), with arbitrary setting of cutting position, positioning accuracy within 5um, non-destructive cutting and grinding.

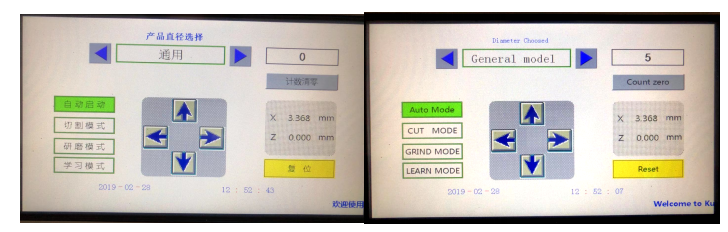

3. The cutting and grinding machine table has a 7-inch touch screen cross-section in both Chinese and English, with no pressure during operation

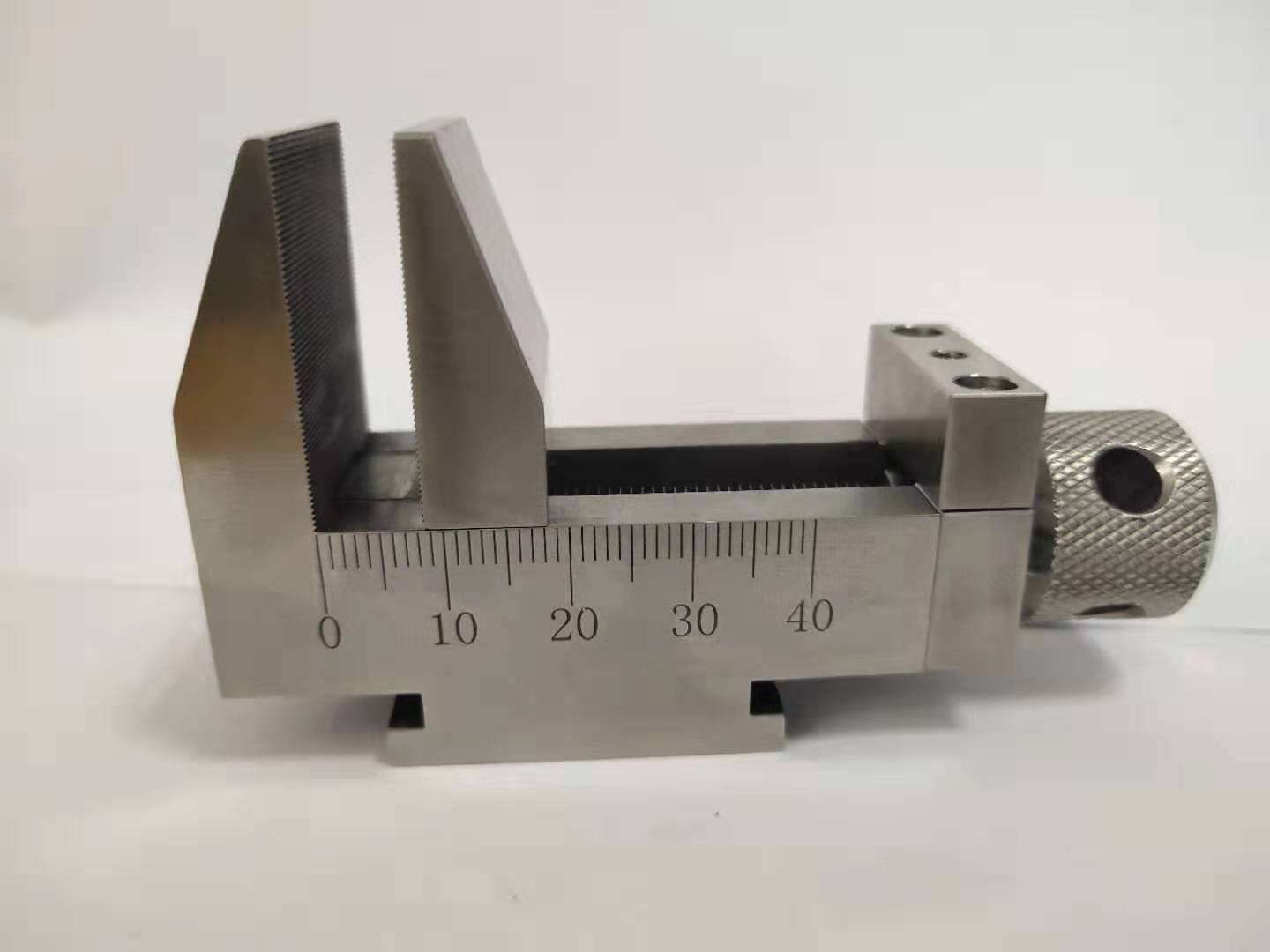

4. Metallographic specialized fixtures can correspond to various sizes of terminals
Exquisite stainless steel material fixture, fine tooth clamping, a good assistant for precision cutting, corrosion-resistant;
3、 System Structure and Configuration
1. Siemens precision cutting motor (equipped with independent motor and its control system); Siemens precision grinding and automatic lifting motor;
2. Color high-definition 7-inch touch screen
3. Misumi ball screws from Japan and silver slide rails from Taiwan;
4. Japan Shinano servo motor;
5. Applicable cutting and grinding range: 0-450mm2
6. Power supply: AC110V~AC230V, power: 1200W
7. Cutting blade: Φ 150X0.5mm
8. Grinding sandpaper: Φ 150x1200#
