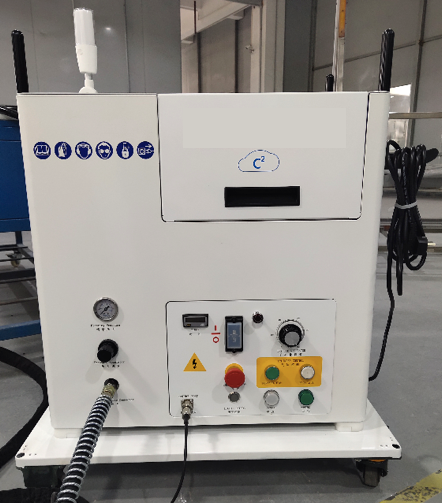

The pallet type dry ice cleaner uses the unique Shaved ice technology to cut large pieces of dry ice into small dry ice particles with a particle size of 0.2-0.3MM, and uses advanced hydrodynamic technology nozzles to spray to the surface at high speed to achieve precision cleaning. It can thoroughly clean the corners, gaps, parting surfaces, and exhaust holes of precision molds or products, and can achieve non-destructive drying and cleaning on the machine without the need for mold disassembly.
1、 Main technical parameters
1. Throat system: single throat
2. Dry ice capacity: greater than 5kg
3. Size of dry ice cubes:
100-150mm × 100-150mm × 200-350mm
4. Adjustable dry ice flow rate: 0-0.5kg/min
5. Gas supply pressure range: 1-7bar
6. Compressed air flow range: 1-1.15m3/min
7. Equipment weight: 73kg
8. External dimensions (L × W × H) 650mm × 400mm × 710mm
9. Power supply configuration: 220VAC, 50HZ, 3A
2、 Accessory standards
1. 6 meters Φ 1 4-minute compressed air pipe
2. 4 meters Φ 1 3-point ice spray tube
3. 1 gun handle
4. 1 gun handle connecting wire
5. 1 round nozzle
6. 1 wide nozzle
7. 1 handcart
8. 1 static electricity connection rope
9. 1 set of protective equipment
3、 Main features of the equipment
1. Single tube design, patented ice supply system, powerful spraying
2. Adjustable injection pressure and good flexibility
3. Built in air filter (20 microns) can filter out pollutants in the air
4. Ergonomic spray gun spotlights
5. The ice spray tube is made of thickened and low-temperature resistant material, which will never become hard
6. Integrated electrostatic grounding wire
7. Equipped with convenient and durable handcart
