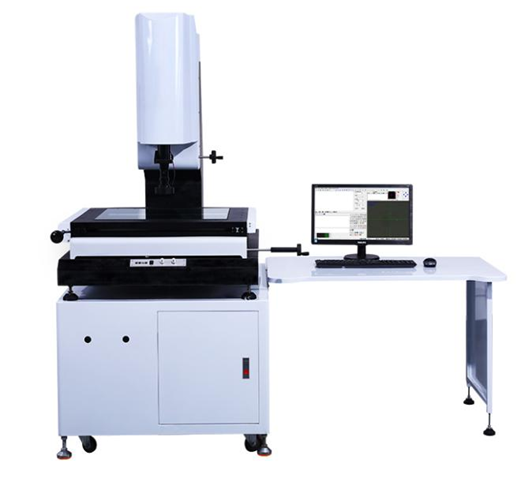

Product Usage: This instrument is suitable for all application fields with the purpose of measuring in two coordinates, and is widely used in industries such as machinery, electronics, instruments, plastics, etc
| Technical Parameter | ||||
| Model | VMS2010 | VMS3020 | VMS4030 | VMS5040 |
| Effective measurement stroke | 200*100 | 300*200 | 400*300 | 500*400 |
| Z-axis focusing lifting range | ≤200mm | ≤200mm | ≤200mm | ≤200mm |
| Glass table size | 223mm×143mm | 330mm×230 mm | 450mm×340mm | 555mm×445mm |
| Stage size | 345mm*250mm | 445mm×345mm | 620mm*510mm | 720mm×610mm |
| Carrying weight | ≤25 kg | |||
| Linear accuracy | U≤( 3+L/200 )μm | |||
| resolving power | 0.001mm | |||
| CCD | US TEO high-resolution 1/3 "color CCD 600TV cable | |||
| lens | Continuously zoom high-definition lens with optical magnification of 0.7 ×- four point five × | |||
| Image magnification | 20×-180× | |||
| Grating ruler | High precision grating ruler with a resolution of 1um | |||
| Measurement software | Optical vision precision measurement software | |||
| Host body | The base, column, and workbench are all high-precision granite platforms of level 000 | |||
| Overall dimensions of the host | 570×410×870mm | 700×470×950mm | 980×670×1020mm | 1170×770×1030mm |
| Note: L represents the measured length in millimeters. | ||||
