1、 TCM-3000 Usage: This cutting and grinding machine is a full body touch screen cutting and grinding instrument that automatically cuts and grinds. The applicable range of the product is 0-20mm in diameter. This system is suitable for metallographic profile cutting and grinding requirements in fields such as the automotive industry, home appliance industry, and electronics industry.
2、 System Characteristics
1. No resin solidification required
Previously, resin solidification and hardening cutting; Then rough grinding, polishing, time-consuming and laborious, making a sample takes several hours. Now this product does not require resin solidification, making a small sample can be completed within 5 minutes.
2. Fully automatic cutting and grinding
Automatic cutting and grinding are integrated, and all front actions are completed automatically on four axes.

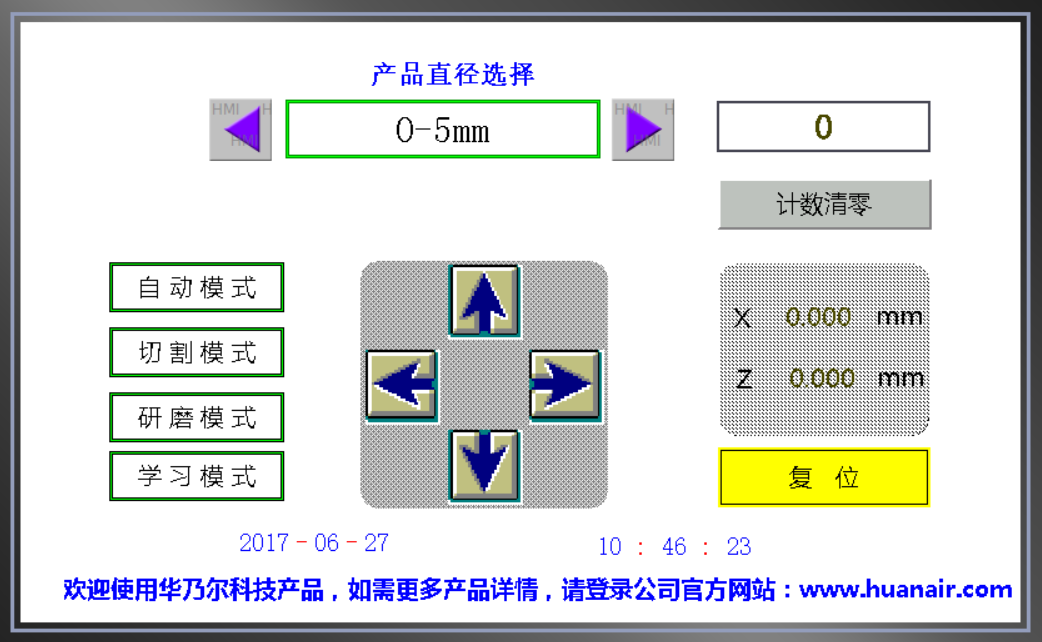

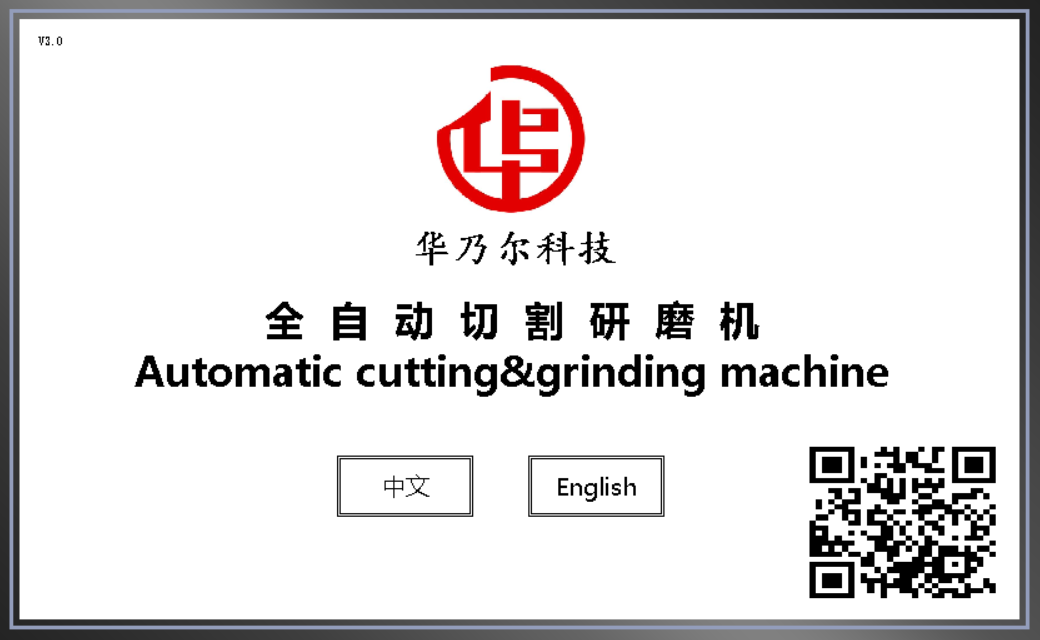

3. The cutting and grinding machine table has a 7-inch touch screen cross-section in both Chinese and English, with no pressure during operation
There is also 'Learning Mode', which can be operated through pictures (exclusive to the industry); Even customized parameters can be set by customers for personalized cutting and polishing, as long as it can be clamped, it is not a problem; Visualize the cutting position and set it arbitrarily

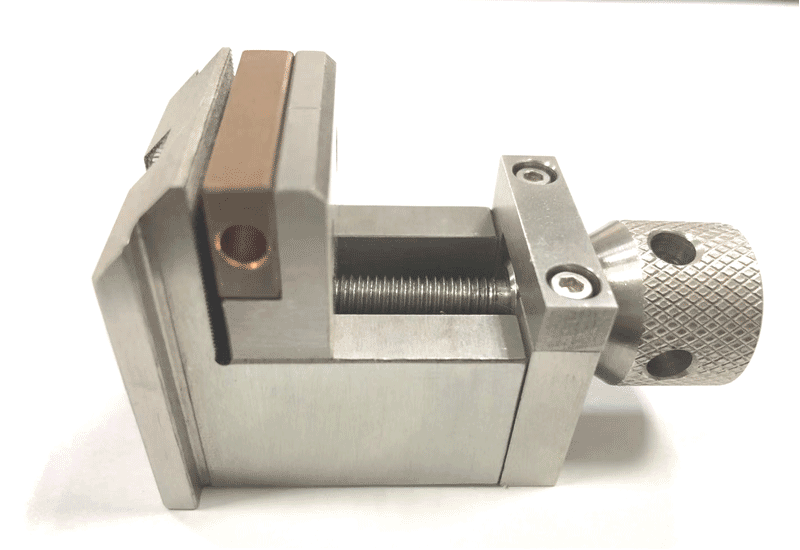

4. Metallographic specialized fixtures can correspond to various sizes of products
Exquisite stainless steel material fixture, fine tooth clamping, a good assistant for precision cutting, corrosion-resistant;
3、 System Structure and Configuration
1. German SEW motor high-power precision cutting motor (can achieve power outage stop and continuous cutting functions); Shinano precision grinding and automatic lifting motor from Japan;
2. Color high-definition 7-inch touch screen
3. Misumi ball screws from Japan and silver slide rails from Taiwan;
4. X-axis Shinano motor;
5. Applicable scope of the product: cutting and grinding with a diameter of 0-20mm
6. Power supply: AC100V~AC240V, power: 750W
7. Cutting blade specifications: Φ 125X0.5mm
8. Grinding sandpaper: 125mm/1500#
